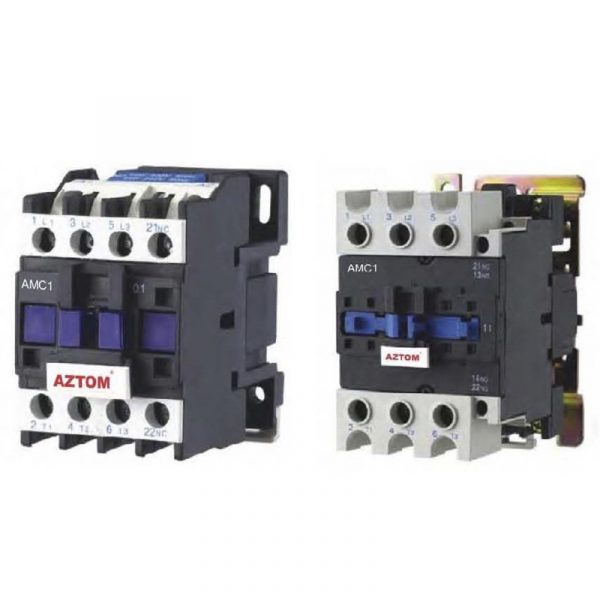

AZTOM AMC1 AC CONTACTOR

AZTOM AMC1 AC CONTACTOR

• RATED CURRENT OF FRAME : 20A UP TO 125A
• DESIGN CODE : 1
• SERIES AC CONTACTOR : C
• ENTERPRISE CODE : AM
• RATED WORKING VOLTAGE UP TO : 600V (220-380-415-440-660)
• RATED FREQUENCY 50/60 HZ AC
• RATED WORKING CURRENT UP TO : 95A
• RATED INSULATION VOLTAGE 660V
•  CONVENTIONAL THERMAL CURRENT : 20-32-40-50-60-80-125A
• RATED OPERATION CURRENT : 9-12-18-25-32-40-50-65-80-95A
• CONTROL POWER : 2.2KW (220V) UP TO 45KW (660V)
• No. OF CONTACTS : 3P+NO – 3P+NC
• COMPLIES STANDARD IEC60947.4 and GB14048.4
